M-ING

Foldable Ming Style Armchair
明式摺疊圈椅
資產 19.png

TIME_

ROLE_

May.2018

Furniture Design
Video Making

傳統明式圈椅的簡煉線條與結構含義在家具體系中意義非凡,但如今因古板印象排斥或變成大眾無法企及的精品而式微。希望跳脫原本中式文化的舊固印象,面對現在高度靈活性、個人化的傢俱趨勢。設計平時可折疊收納成一扁平,使用時可以快速展開成的折疊傢俱。對話過往中式傳統傢俱躍然紙上,再次回到現代。

The concise lines and elegant structure of traditional Ming-style armchairs are of great significance and representation in furniture design history. However, they are now declining due to stereotyped impressions or become exquisite products that's beyond the reach of the commons.

Breaking away from the old impression of Chinese furniture and adapt with the modern furniture trend of highly
flexibility and personalization. A new armchair design is born which can be folded and stored instantly. Starting a dialogue with past and modern Chinese furniture. Revive it from the history and open it up again to our daily.

"Revive the

fading culture"

ISSUE


The forms of Chinese furniture evolved along three distinct lineages which date back to 1000 BC, which evolved independently from Western furniture system.  The Ming dynasty is very much seen as the golden age of furniture production in China. When you look at a piece of Ming furniture, the first thing that strikes you is its simplicity and their designs are not divorced from the function: Ming pieces were made with a purpose, and their clean lines celebrate the material used.

CONCEPT

Ming pieces were produced 400 years or more ago, and it's spirit have really stood the test of time, they are still influencing design wildly.

However, nowadays, many Chinese traditional cultures are regarded as a symbol of tackiness and stubborn in Pan-chinese publics’ impressions. Therefore, traditional Chinese furniture has gradually disappeared from the home of modern daily life, or it has become a boutique display that is out of reach by the generals.

The design hopes to keep the ancient spirit of the original Chinese culture and reinterpret it through modern design vocabulary.


MODERN FURNITURE DESIGN TREND

資產 5.png

Trend of urbanization throughout the globe causing people migrating to the city from the rural area. As a result, public sharing space was become bigger and more essential to an urban area than ever. On the other hand, personal space tends to be decreasing. For instance, co-working space trend was solid evidence of this phenomena.



Therefore, the modern furniture design trend focuses more and more on flexibility and storage issue in order to fulfill the needs of multi-functioning space.

DESIGN CONCEPT

資產 6.png
資產 7.png

Simplify the line structure of the Ming-style circle chair, but inherit the structural vocabulary of the past.
In the Chinese furniture system of "No waist beam chair category" The design language is inherited from the Chinese ancient building structure which uses wooden bolt large column structure as a seat surface fixing measure. Try to represent that spirit in the design. The upper horizontal bar becomes the fixing bar of the seat for folding design. The legs are also cylindrical and connected to the gooseneck ( Supporting structure of armrest ).

資產 8.png

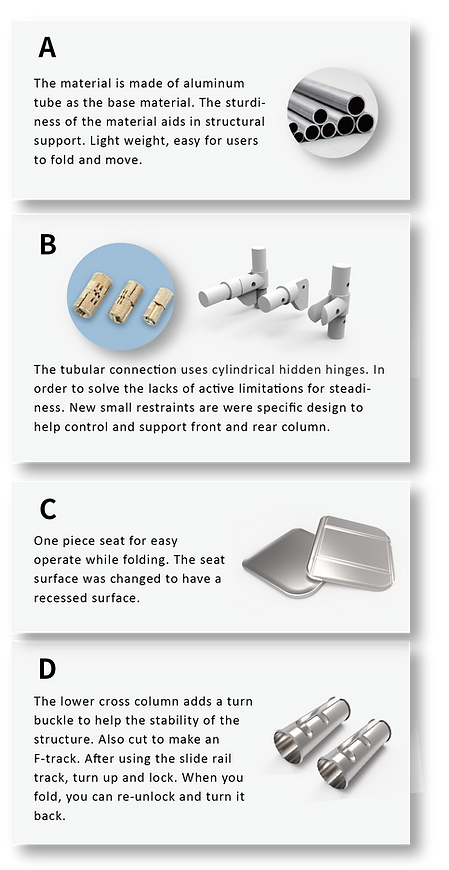

DESIGN DETAIL

資產 9.png
資產 9.png

TRIAL AND ERROR

資產 25.png

In the process of design, failure is inevitable. The quest of keeping the Chinese furniture language with foldable structure IS NOT really as simple as it seems.

The final model is the 13th structural iteration. In this process, I used plastic water pipe as my prototype material, and verified the idea directly by making prototype models and revising 3D CAD at the same time.



資產 26.png

FOLDABLE MING STYLE ARMCHAIR

資產 16.png

Chinese furniture design once reached its peak in Ming dynasty. In the 20th century, the Chinese furniture design language lost it's voice due to the domination of western culture .



Nowadays, more and more new generation of Chinese furniture designer combines the ancient philosophy behind the classic styles and the modern aesthetics of the 21st century. They seek to interpret the new meaning of Chinese furniture today and define a fresh and unique style for modern Chinese living.

資產 17.png
資產 18.png
